Overview

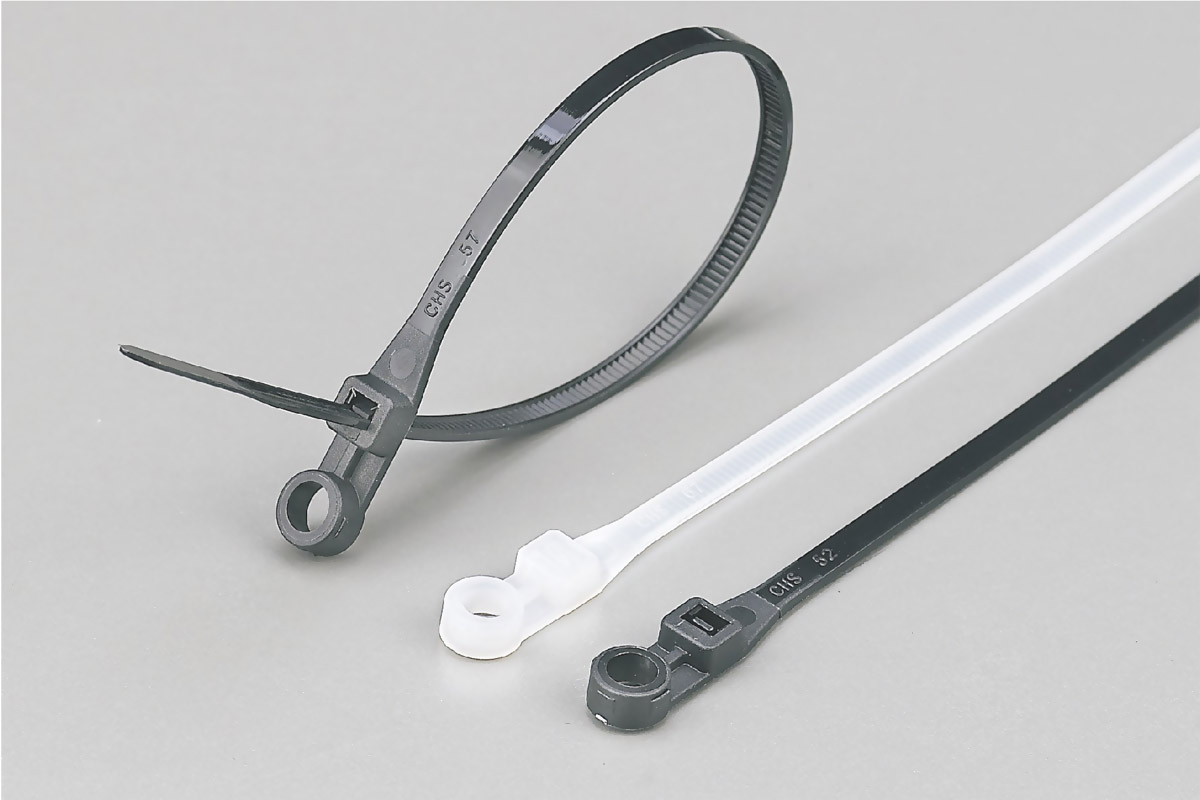

◆Material：Nylon 66, 94V-2 certificated by UL. Acid & erosion control,insulate well and not easy to aging、tensile strong.
◆Application temperature：-40℃ to 85℃
◆Installation temperature：-20℃ to 85℃
◆Color：Natural, Black,UV black, other colors are available as requested.
Technical Parameters

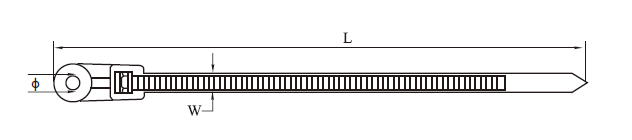

| 编 号 Item NO. | L(长) | W(宽) (mm) | (最大)捆扎范围 Max.Bundle DIA(mm) | 孔径(φ) Hole Dia.(mm) | 最小拉力 Tensile Strength | ||
| Inch | mm | LBS | KGS | ||||
| CHS-110MT | 4 1/3″ | 100 | 3.6 | 22 | 4.5 | 40 | 18 |
| CHS-150MT | 6″ | 145 | 3.6 | 32 | 4.5 | 40 | 18 |
| CHS-200MT | 8″ | 220 | 4.3 | 42 | 5.5 | 50 | 22 |
| CHS-380MT | 15″ | 381 | 7.6 | 98 | 6.2 | 120 | 55 |
