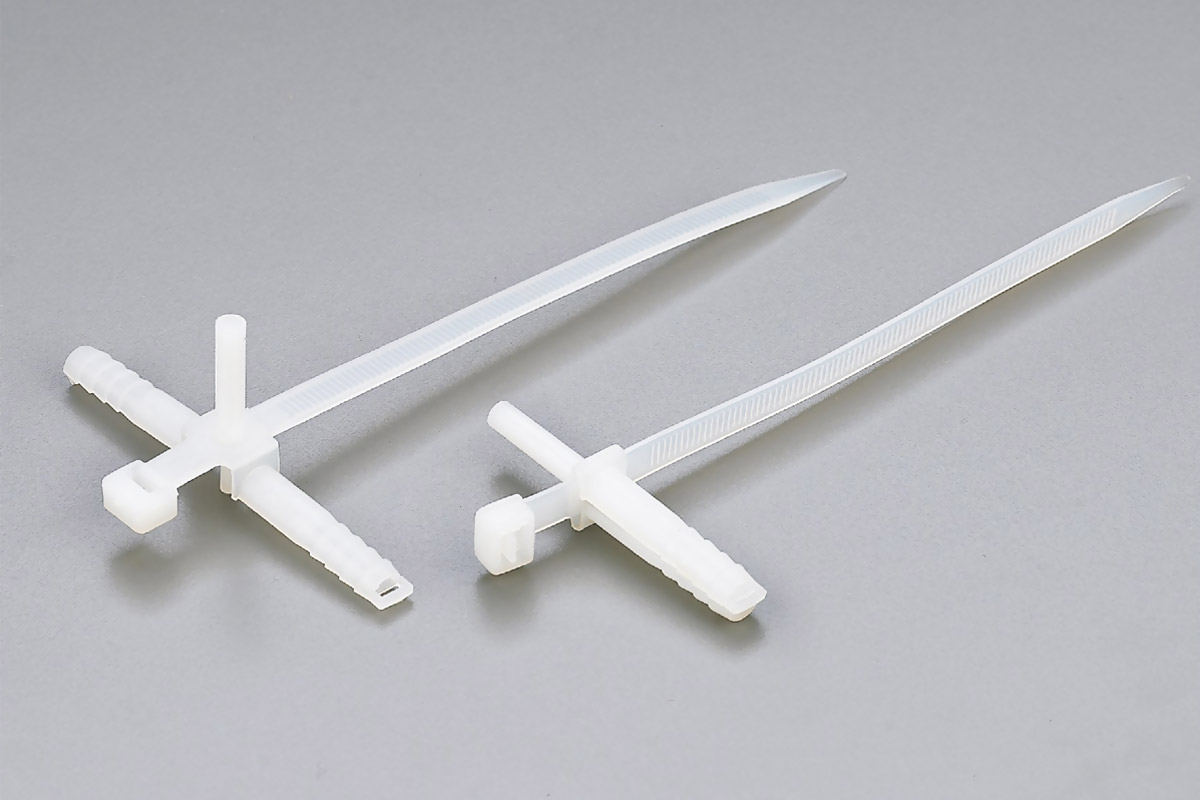

• Expand Plug Cable Ties 22-1
Overview

◆Material:Nylon 66, 94V-2 certificated by UL. Acid & erosion control,insulate well and not easy to aging、tensile strong.
◆Application temperature:-40℃ to 85℃
◆Installation temperature:-20℃ to 85℃
◆Color:Natural, Black,UV black, other colors are available as requested.
◆Usage:Can insert the head (Expand plug) into wall, easy to use.

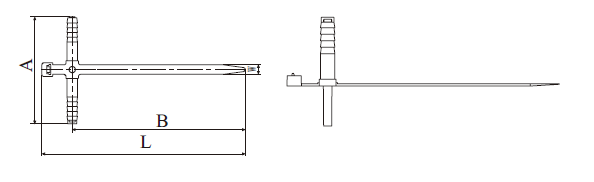

Technical Parameters
编 号
     Item NO.
L(长)
W
     (mm)
A
     (mm)
B
     (mm)
(最大)捆扎范围
     Max.Bundle Dia. (mm)
最小拉力 Min.loop Tensile Strength
InchmmLBSKGS
CHS-150EP6"150779128358538
