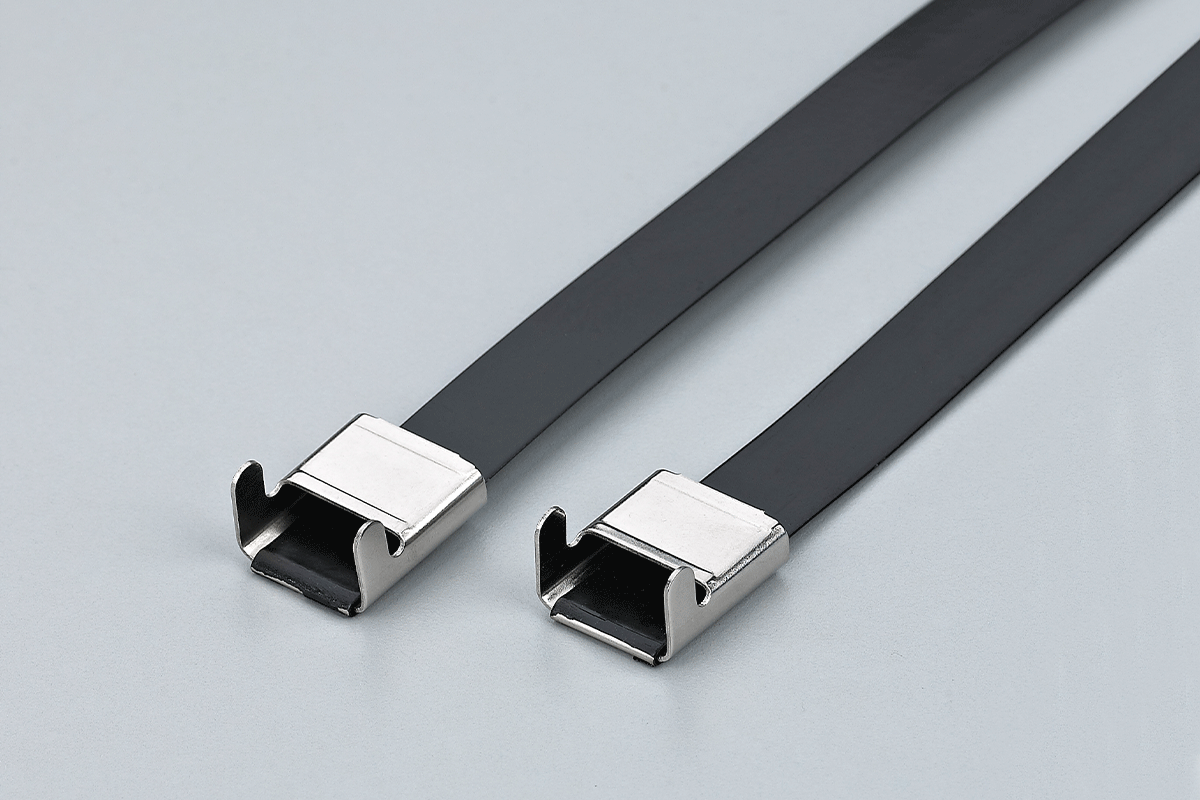

L-type Plastic Sprayed Stainless Steel Cable Ties



Overview

◆Characteristic：They have an unique ball locking with plastic jetting mechanism that allow easily and quickly installed and notundone;
◆High tensile strength：Non-flammability;
◆Temperature：Working temperature -40℃ to 85℃;
◆High resistance to acetic acid ,alkali acid,sulphuric acid,corrode etc;
◆All length are available,stainless steel type：304,316.

Technical Parameters

编号 Item NO.	长度		宽度 (mm)	厚度 (mm)	（最大）捆扎范围 Max.bundle Dia.(mm)	最小拉力 Tensile Strength
编号 Item NO.	INCH	MM	宽度 (mm)	厚度 (mm)	（最大）捆扎范围 Max.bundle Dia.(mm)	LBS	KGS
LTP-12×150	6″	150	12	0.4	37	270	120
LTP-12×200	8″	200	12	0.4	50	270	120
LTP-12×250	10″	250	12	0.4	63	270	120
LTP-12×300	11 5/8″	300	12	0.4	76	270	120
LTP-12×350	13 3/4″	350	12	0.4	89	270	120
LTP-12×400	15 3/4″	350	12	0.4	102	270	120
LTP-12×450	17 3/4″	450	12	0.4	115	270	120
LTP-12×500	19 11/16″	500	12	0.4	128	270	120
LTP-12×550	21 1/16″	550	12	0.4	141	270	120
LTP-12×600	23 5/8″	600	12	0.4	154	270	120
LTP-12×650	25 9/16″	650	12	0.4	167	270	120
LTP-12×700	27 1/2″	700	12	0.4	180	270	120
LTP-15×200	8″	200	15	0.4	50	337	150
LTP-15×250	10″	250	15	0.4	63	337	150
LTP-15×300	11 5/8″	300	15	0.4	76	337	150
LTP-15×350	13 3/4″	350	15	0.4	89	337	150
LTP-15×400	15 3/4″	400	15	0.4	102	337	150
LTP-15×450	17 3/4″	450	15	0.4	115	337	150
LTP-15×500	19 11/16″	500	15	0.4	128	337	150
LTP-15×550	21 1/16″	550	15	0.4	141	337	150
LTP-15×600	23 5/8″	600	15	0.4	154	337	150
LTP-15×650	25 9/16″	650	15	0.4	167	337	150
LTP-15×700	27 1/2″	700	15	0.4	180	337	150
LTP-15×750	29 9/16″	750	15	0.4	191	337	150
LTP-15×800	32″	800	15	0.4	193	337	150
LTP-15×1000	39 3/8″	1000	15	0.4	206	337	150
