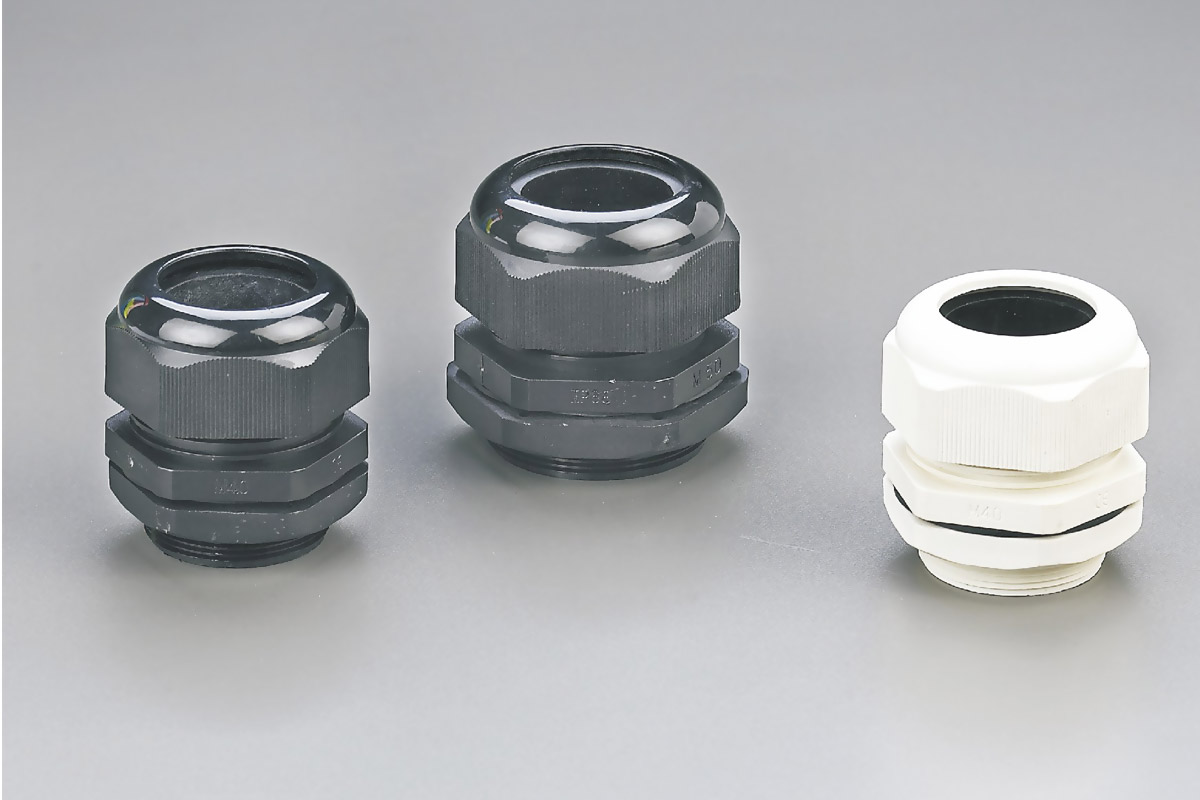

• Nylon Cable Glands(metric) 20-1
Overview

◆ Threaded entry:Metric
◆ Color :black and grey
◆ Application temperature:-40℃-100℃,the item can also endure 120℃ instantly
◆ protection:IP68
◆ Standard:IEC698


Technical Parameters
编 号
Item NO.

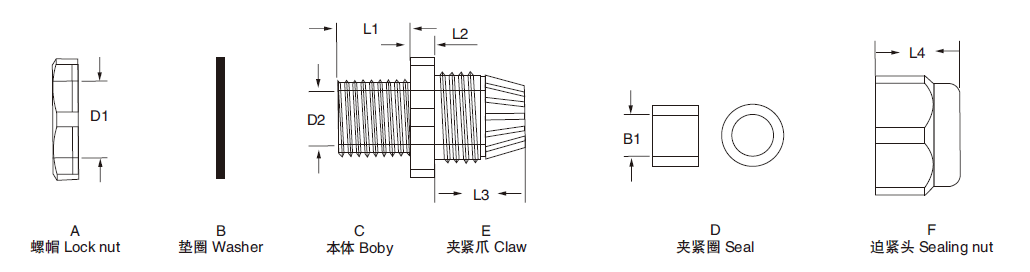

D1(mm)D2(mm)B1(mm)L1(mm)L4(mm)电缆直径范围
Cable range
M12 ×1.5128.367.913.33-6.5
M16×1.51610.99.61515.85-10
M20S×1.52014.812.51518.43-7
M20M×1.52014.812.51518.46-12
M20L×1.52015.514.51519.510-14
M25×1.5252118.41522.313-18
M32×1.5322626.21524.818-25
M40×1.5403333.41831.625-32
M50×1.55042.536.51831.630-38
M63×1.56354.14418.532.634-44
