Fir Tree Cable Ties



Product introduction

◆Material: Polyamide 6.6 or heat stabilised(PA66HS),94V-2 certificated byUL. Acid & erosion control,insulate well and not easy to aging、tensile strong.

◆Application temperature: -40℃-85℃(PA66) -40℃-105℃(PA66HS)

◆Installation temperature: -10℃-85℃(PA66) -10℃-105℃(PA66HS)

◆Features: The fixed head is in the shape of a fir tree, which can be usedfor various panel thicknesses to minimize the entry of dust, dirt, andwater.

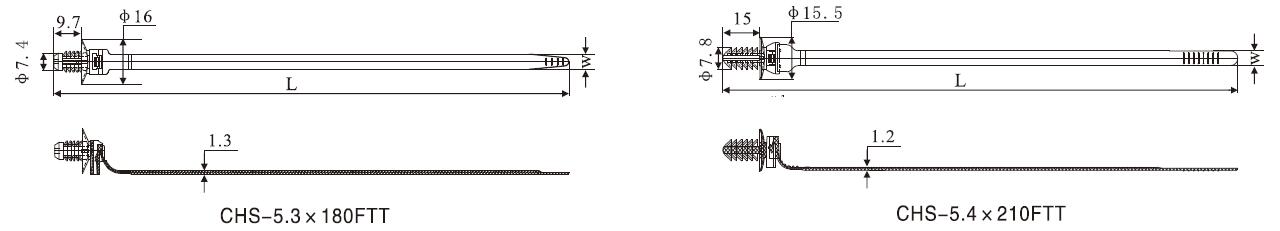

Technical parameter

编号 Item NO.	L（长）		W（宽）（mm）	（最大）捆扎范围 Max.Bundle DIA.（mm）	最小拉力 Tensile Strength		孔径（φ） Hole Dia.	机板厚度 Panel Thickness
编号 Item NO.	Inch	mm	W（宽）（mm）	（最大）捆扎范围 Max.Bundle DIA.（mm）	LBS	KGS	mm	mm
CHS-5.3×180FTT	7.1/10''	180	5.3	30	40	18	6.5-7	0.6-4.5
CHS-5.4×210FTT	8.1/4''	210	5.4	48	40	18	6.5-7.2	1-8
