Product introduction
◆Material: Polyamide 6.6 or heat stabilised(PA66HS),94V-2 certificated byUL. Acid & erosion control,insulate well and not easy to aging、tensile strong.
◆Application temperature: -40℃-85℃(PA66)-40℃-105℃(PA66HS)
◆Installation temperature:-10℃-85℃(PA66)-10℃-105℃(PA66HS)
◆Features: Fixed head in elliptical shape, which can be used for variouspanel thicknesses to minimize the entry of dust, dirt, and water.

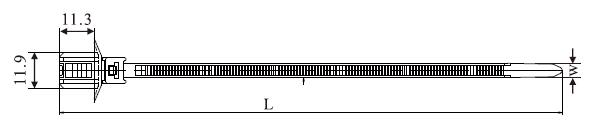

Technical parameter
| 编号 Item NO. | L（长） | W（宽） （mm） | （最大）捆扎范围 Max.Bundle DIA.（mm） | 最小拉力 Tensile Strength | 孔径（φ） Hole Dia. | 机板厚度 Panel Thickness | ||
| Inch | mm | LBS | KGS | mm | mm | |||
| CHS-4.7×165FTT | 6.1/2'' | 165 | 35 | 35 | 40.5 | 180 | 6.5×13 | 0.7-5.0 |
