Wing Push Mount



Product introduction

◆Material: Polyamide 6.6 or heat stabilised(PA66HS),94V-2 certificatedby UL. Acid & erosion control,insulate well and not easy to aging、tensile strong.

◆Application temperature: -40℃-85℃(PA66)-40℃-105℃(PA66HS).

◆Installation temperature: -10℃-85℃(PA66)-10℃-105℃(PA66HS).

◆Features: The head is supported in the shape of a wing, which is openand fixed to achieve stable installation on the board.


Technical parameter

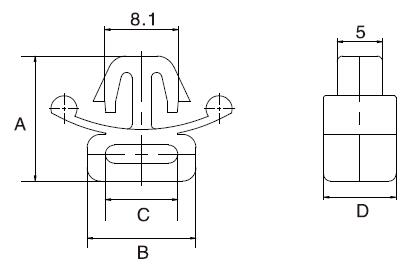

编号 Item NO.	配合扎带宽度 Matched cable ties width(mm)	A	B	C	D	机板厚度 Panel Thickness
编号 Item NO.	配合扎带宽度 Matched cable ties width(mm)	mm	mm	mm	mm	mm
WPM-8	4.8-7.6	13.8	12	8	8	3.0
