Fir Tree Holder



Product introduction

◆Material: Heat stabilised(PA66HS).

◆Application temperature: -40℃-105℃.

◆Installation temperature: -10℃-105℃.

◆Features: The fixed head is in the shape of a fir tree, which can be usedfor various panel thicknesses to minimize the entry of dust, dirt, andwater.


Technical parameter

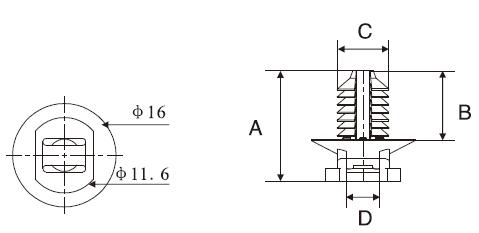

编号 Item NO.	配合扎带宽度 Matched cable ties width(mm)	A	B	C	D	孔径（φ） Hole Dia.	机板厚度 Panel Thickness
编号 Item NO.	配合扎带宽度 Matched cable ties width(mm)	mm	mm	mm	mm	mm	mm
FTH-7.5	3.6-4.8	13.8	7.5	7.9	5.2	6-7	0.6-4
FTH-10.5	3.6-4.8	17	10.5	7.9	5.2	6-7	1-6
